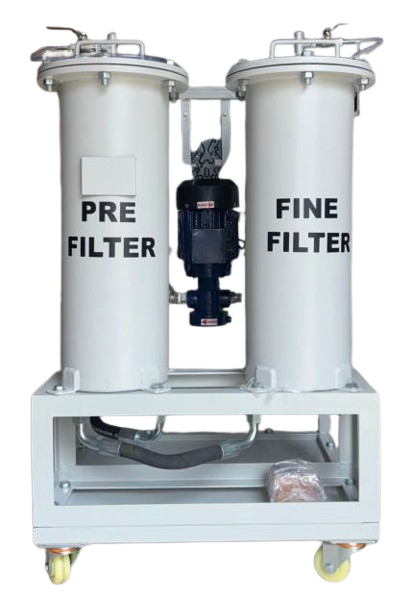

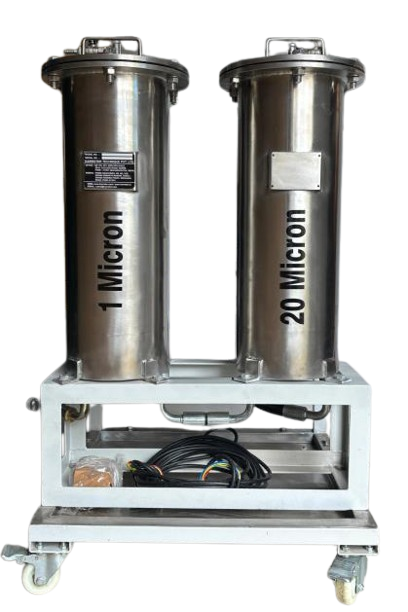

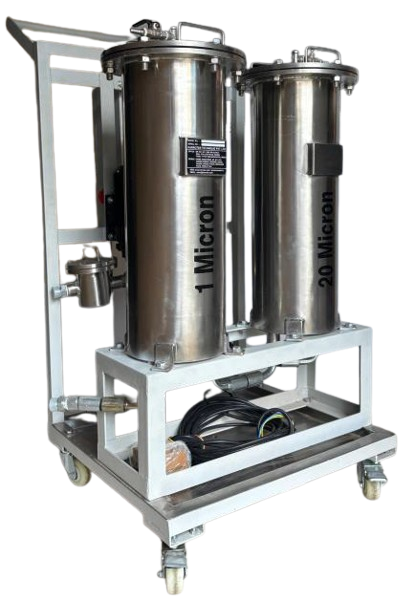

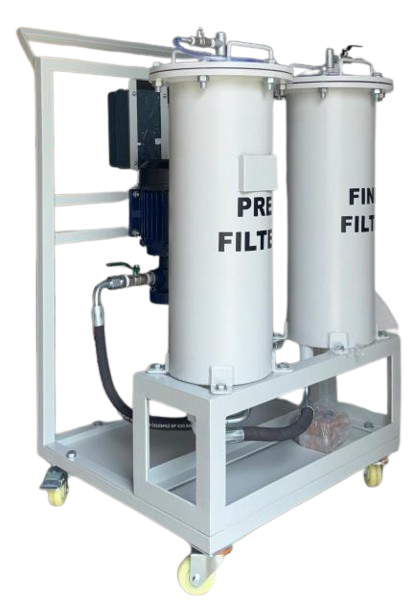

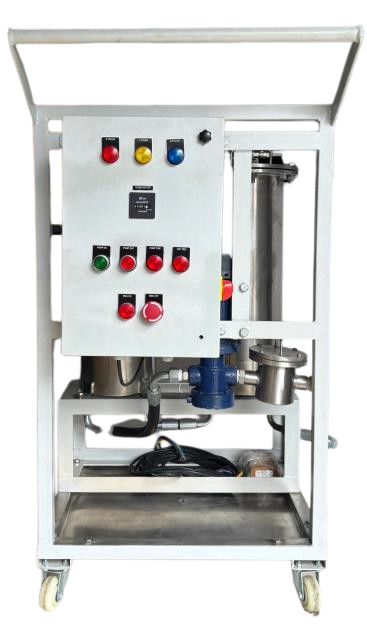

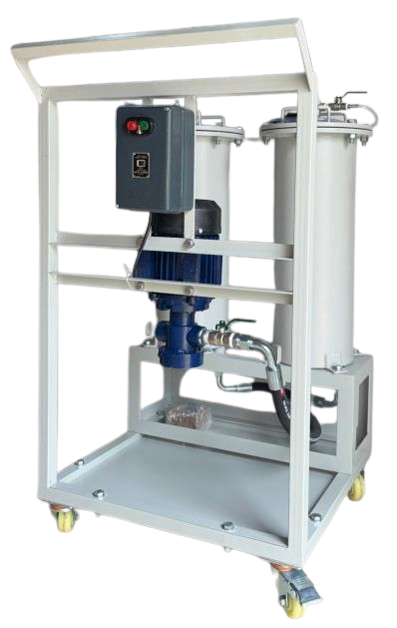

Oil Filtration Skid – Dual Filter
Prevent Equipment Failure, keep your oil clean with our portable filtration skid
Our oil filtration skid provides a convenient portable mode of off-line filtration, flushing and fluid transfer. Use it with your in-plant machinery, lube oil filtration and hydraulic equipment to achieve and maintain
proper ISO cleanliness levels.
Benefits
| Enhance Equipment Life | Improve Equipment Performance | Reduction in Machine Downtime |
| Reduction in spare part cost | Increase oil life by 2 times | Reduces Sludge and solid particles |
| Maintain Oil Viscosity | Improve Component Life | Reduce Moisture contamination |
Application Areas
| Power Plants | Marine Vessels | Offshore | Mining Equipments |
| Paper Mills | Metal Stamping | Cement Industry | Construction Equipments |
| Injection Molding | Manufacturing Industry | Plastic Molding | Oil Rigs |
Use Combinations of Filter Elements according to your requirement

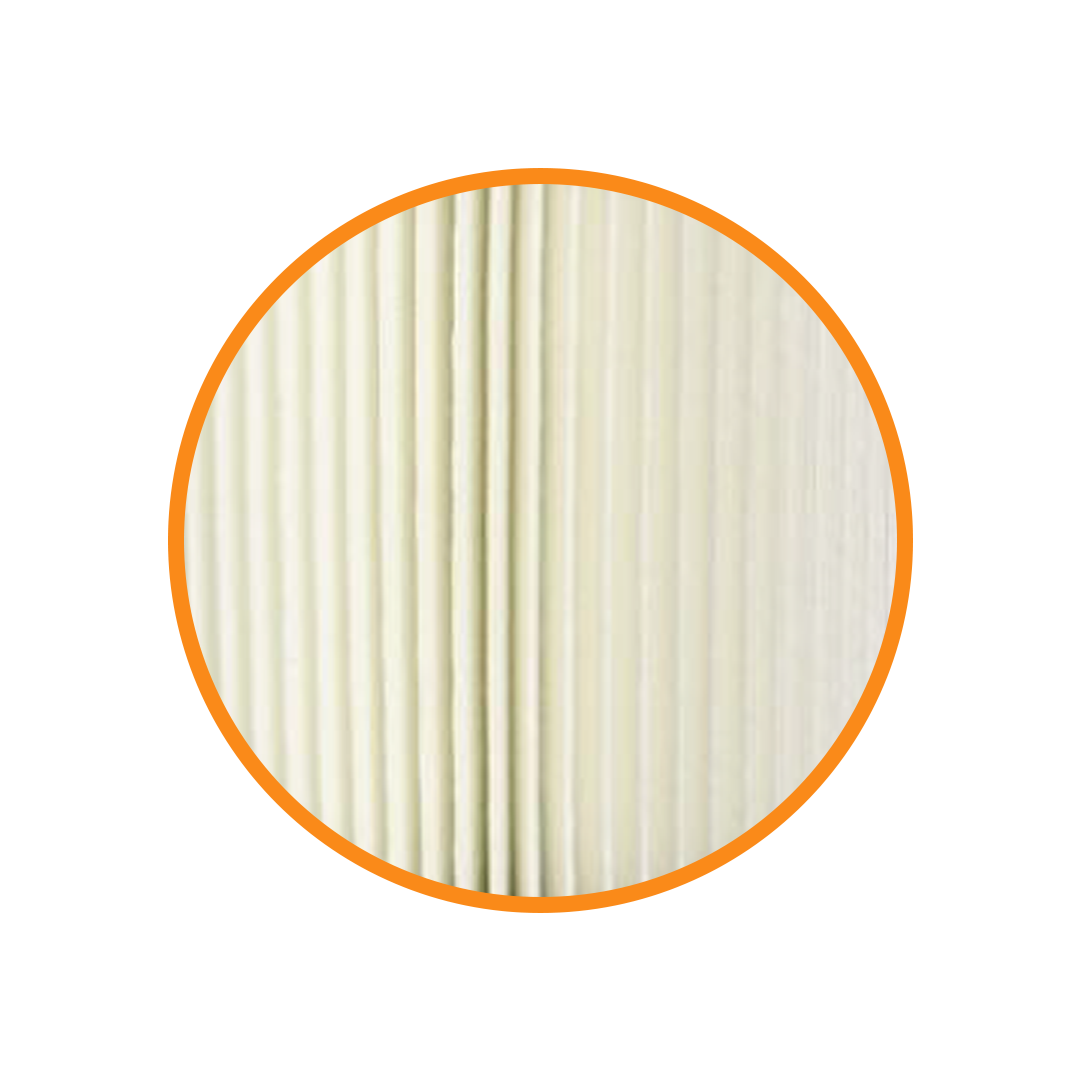

White paper Impregnated Micro Glass Fiber 10, 5 and 1 micron depth filter element
Water Absorb Polymer + Micro Glass Fiber filter element 5 micron Holds 4.7 Lit Water

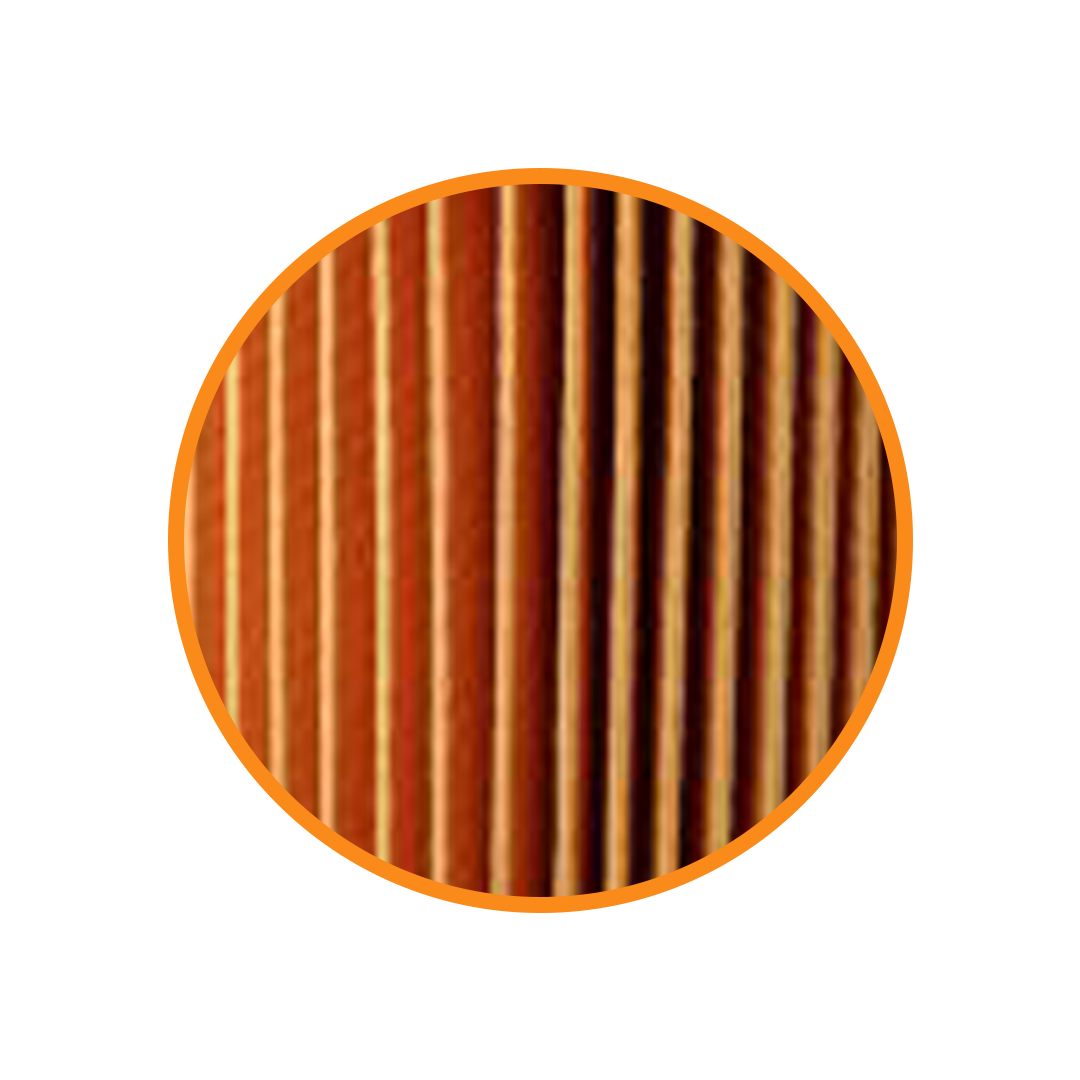

Brown Paper Pre-filter element Single Layer 10 / 20 / 30 micron

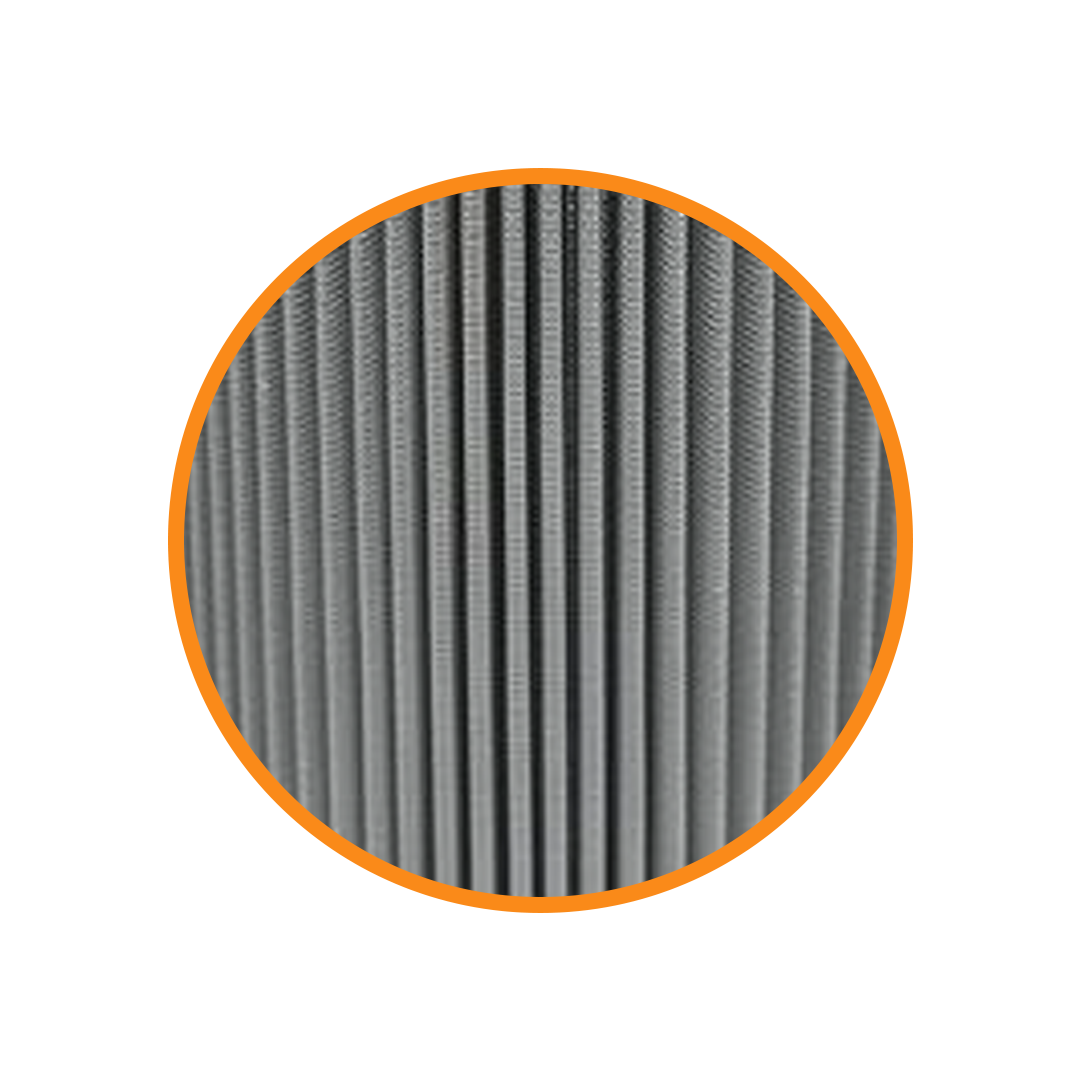

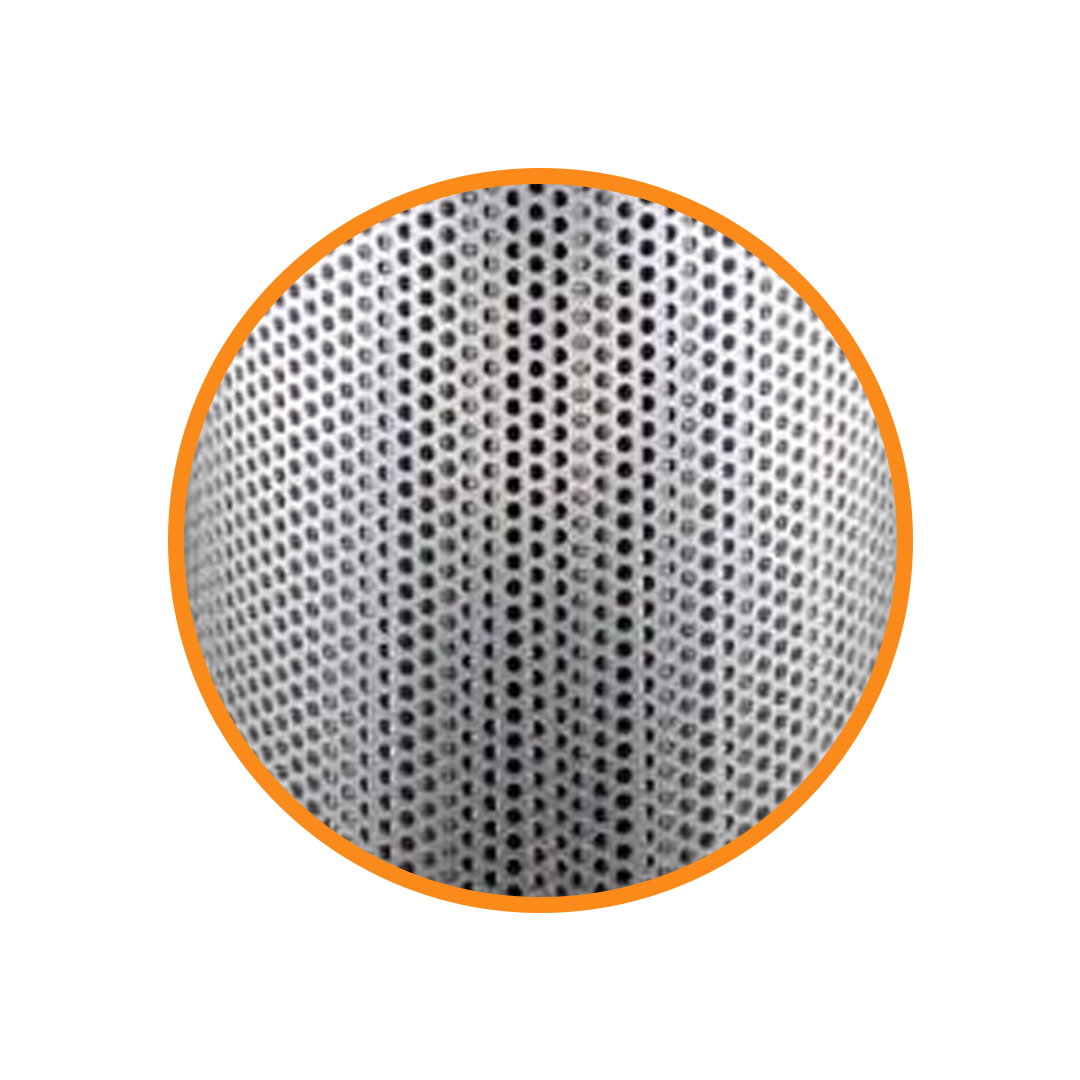

Stainless Stee Pleated filter media above 50 micron
| Single Filter Housing | Dual Filter Housing | |
|---|---|---|
| Operating Power Ratings | 110 / 220 /440 VAC, 50 / 60 Hz, Single / 3 Phase, 0.5 Hp | |
| Flowrate of Unit | 3/4” BSP | 3/4” BSP |
| Vacuum Pump with motor (belt driven) | 10 LPM | 10 LPM |
| ISO Class | 19 / 17 / 14 | 19 / 17 / 14 |
| Operating Pressure | 0.5 to 3 bar | 0.5 to 3 bar |
| Filter Collapse Pressure | 4 bar | 4 bar |
| Water Holding Capacity | 4.7 Lit (only for 15 B Filter Element} | |
| Pressurized Delivery | YES – Up to 3 mtr | YES – Up to 3 mtr |
| Oil Sample Valve | YES | YES |
| Overall Dimensions | 350 mm (L) X 600 mm (W) X 1000 mm (Ht) | 600 mm (L) X 600 mm (W) X 1000 mm (Ht) |
| Weight | 80 Kg | 120 Kg |
| Operation Process | Multiple Pass | Multiple Pass |
In-house Testing Results (Patch Testing):
Dirty oil Patch Before trial
Oil Patch After trial of 30 min
Oil Patch after trial of 60 min
Oil Patch after trial of 120 min
New Oil Patch (NAS 10)
Trial Parameters
Oil used : Hydraulic Oil 46 Cst / Oil Volume: 70 Lit / Contamination added: Manually
Oil Temperature: Ambient / Flowrate : 5 LPM / Oil Filter Model: Dual – 15 CA
Hydraulic Oil Filtration Machine – Unmatched Filtration Solutions
When it comes to maintaining the performance and longevity of hydraulic systems, a Hydraulic Oil Filtration Machine is an indispensable tool. Designed to eliminate contaminants, moisture, and impurities, these machines ensure that your hydraulic systems run smoothly, reducing downtime and repair costs.
Why Choose a Hydraulic Oil Filtration Machine?
Hydraulic systems rely on clean oil to function effectively. Even minor contamination can result in equipment failure, increased wear, and costly repairs. Here are some key reasons why investing in a Hydraulic Oil Filtration Machine is a wise decision:
- Enhanced Equipment Lifespan: Regular filtration improves the durability of your hydraulic components.
- Cost-Effective Maintenance: Preventing contamination helps reduce frequent oil changes and repairs.
- Eco-Friendly Operations: Filtration reduces oil waste, contributing to a sustainable environment.
- Improved Efficiency: Clean oil enhances the overall performance of your hydraulic system.
Key Features of Our Hydraulic Oil Filtration Machine
At Karroter, our Hydraulic Oil Filtration Machines are engineered to meet the highest industry standards. Here’s what sets our systems apart:
- Advanced Filtration Technology: Removes particles as small as 1 micron, ensuring maximum purity.
- Moisture Control: Effectively eliminates water content to prevent oxidation and corrosion.
- User-Friendly Design: Easy to operate and maintain, making it suitable for various industrial applications.
- Customizable Solutions: Tailored to meet the specific needs of your equipment.
Applications of Hydraulic Oil Filtration Machines
The Hydraulic Oil Filtration Machine is widely used across various industries, including:
- Manufacturing: Ensures optimal performance of hydraulic presses and machines.
- Construction: Protects heavy equipment like excavators and loaders from oil contamination.
- Power Plants: Maintains turbine efficiency by ensuring clean hydraulic oil.
- Automotive: Keeps hydraulic lifts and machinery in top condition.
How Does a Hydraulic Oil Filtration Machine Work?
Our Hydraulic Oil Filtration Machine uses a multi-stage filtration process:
- Coarse Filtration: Removes larger particles and debris.
- Fine Filtration: Eliminates microscopic impurities.
- Moisture Removal: Extracts water content to prevent rust and oxidation.
- Oil Reconditioning: Restores the oil’s original properties for extended use.
Benefits of Using Hydraulic Oil Filtration Machines
- Reduced Downtime: Minimize equipment failures caused by contaminated oil.
- Lower Operational Costs: Extend the lifespan of your hydraulic oil and components.
- Sustainability: Decrease oil waste by reusing filtered oil.
Why Karroter is Your Trusted Partner
At Karroter, we understand the critical role hydraulic oil filtration plays in ensuring efficient operations. Our Hydraulic Oil Filtration Machines are built with precision and designed for long-lasting performance. We pride ourselves on delivering solutions that align with your industry’s specific needs.
Contact Us
Looking to invest in a high-quality Hydraulic Oil Filtration Machine? Get in touch with Karroter today and experience the difference. Our experts are ready to guide you in selecting the perfect machine for your needs.
