KTS 200
Portable Oil Filtration Machine
| Model | KTS 200 |
|---|---|
| Centrifuge model | KT200 |
| Flowrate | 1200 LPH @ 7 Bar pressure |
| Dirt Holding Capacity | 2000 cc |
| Pump Flowrate | 20 LPM @ 10 Bar pressure |
| Dimensions with Filter mounted |
750 mm (L) X 450 mm (W) X 1000 mm (Ht) |
| Weight of Machine | 90 Kg. Approx |

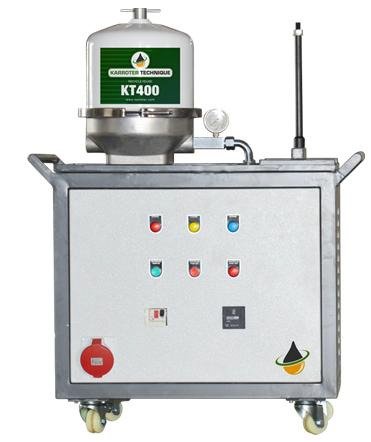

KTS 400
Portable Oil Filtration Machine
| Model | KTS 400 |
|---|---|
| Centrifuge model | KT400 |
| Flowrate | 3000 LPH @ 7 Bar pressure |
| Dirt Holding Capacity | 4000 cc |
| Pump Flowrate | 60 LPM @ 10 Bar pressure |
| Dimensions with Filter mounted |
750 mm (L) X 450 mm (W) X 1100 mm (Ht) |
| Weight of Machine | 125 Kg. Approx |

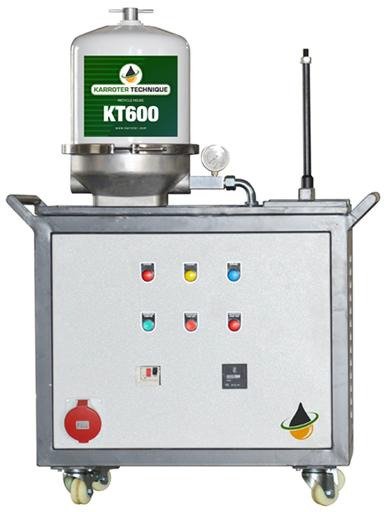

KTS 600
Portable Oil Filtration Machine
| Model | KTS 600 |
|---|---|
| Centrifuge model | KTS 600 |
| Flowrate | 4200 LPH @ 7 Bar pressure |
| Dirt Holding Capacity | 6000 cc |
| Pump Flowrate | 75 LPM @ 10 Bar pressure |
| Dimensions with Filter mounted |
750 mm (L) X 450 mm (W) X 1200 mm (Ht) |
| Weight of Machine | 130 Kg. Approx |
Applications: Manufacturing Industries & operations
| Quenching | Grinding | Honing |
| Stamping | Boring | Heat Treatment |
| Gun Drilling | Cutting | CNC |
| Wire Drawing | Cement Plants | Power Plants |
| Fastener manufacturing | Textile | Process Industry |
Ideal for cleaning below Oils
| Lube Oi | Hydraulic Oil | Gear Oil |
| Transmission Oil | Waste Oil | Quench Oil |
| Press Oil | Glycol | Biodiesel |
| Furnace Oil | Thermic Fluid | Rust Free Oil |
Centrifugal oil Filtration Skids: Efficient and Reliable Oil Cleaning Solutions
Maintaining the efficiency of industrial machinery requires the regular removal of contaminants from lubricants and hydraulic oils. This is where centrifugal oil cleaning machines play a crucial role. At Karroter, we specialize in providing advanced centrifugal oil cleaning machines designed to enhance the performance and lifespan of your equipment.
Why Choose a Centrifugal Oil Cleaning Machine?
A centrifugal oil cleaning machine is an innovative solution for filtering out impurities from various types of oils without the need for consumable filter elements. Unlike conventional filtration systems, these machines rely on centrifugal force to separate contaminants, including dirt, sludge, and water, from oil. This makes them a cost-effective and eco-friendly option for industrial applications.
Key benefits of our centrifugal oil cleaning machines include:
- High Efficiency: Removes impurities up to 99%, ensuring clean oil for optimal machine performance. Removes solid particles down to 1 micron.
- Cost Savings: Reduces downtime and minimizes the need for frequent oil changes.
- Environmentally Friendly: Eliminates disposable filters, reducing waste production.
- Zero consumable cost: Our centrifugal oil filters are completely cleanable. Hence there is no recurring cost, consumable cost involved after sale. It has one time investment and life time use.
Applications of Centrifugal Oil Cleaning Machines
Our centrifugal oil cleaning machines are ideal for a wide range of industries, including:
- Automotive: Cleans engine oils to maintain vehicle performance.
- Marine: Ensures contamination-free oils in large marine engines, auxiliary engines. Can be retrofitted to existing engine crankcase door with our modified engine mounting plate or modified crankcase door. In addition, our filtration machines are useful for hatch covers, steering gear systems, cranes, winches etc.
- Manufacturing: Removes dirt, soot particles from lubricants used in heavy machinery.
- Power Generation: Enhances the reliability of turbines and gear boxes by keeping hydraulic oils clean.
- Stone Crushers: Removes dust particles from hydraulic oil and maintain viscosity within limit for longer time. Ideally suited for cone crusher lube oil circuit application where heavy dust generates during operation. Several OEMs like Puzzolana, Proman, Propel, Metso, DNRS, MINEX, Gujarat Apollo, Shree Conmix, Mechtech are using this technology to increase life of equipment and oil.
- Cement Plants: Centrifuge filter is commonly used in cement industry to clean gear oils, hydraulic oils, lubrication oils etc. The ideal application in cement industry is slide shoe bearing, roller lubrication mill, cement mill, ball mill, crushers, vertical raw mill VRM, gear boxes. A combination machine is used to achieve NAS 7 level of oil cleanliness.
- Wire and Cable Industry: Skid mounted or portable machines as well as dedicated centrifugal oil filtration machines are used to clean aluminum wire drawing oil application. Maximum people uses Drawmet oil for this application where high contamination generates in drawing of aluminum wire.
- Furnaces and Boilers: Furnace oil now a days comes with heavy solid contamination around 8% to 10%. It flows through storage tank, day tank or service tank, piping, valves, pumps, mesh strainers and finally through nozzles for firing into the burners. Several times, all these parts get clogged due to solid contamination. Frequent clogging of nozzles tend to poor fire in to the burners, frequent cleaning of nozzles, process down time. Using centrifugal oil filter on day tank or service tank reduces all these issues and improves burning efficiency of burner.
- Heat Treatment: Centrifugal oil cleaning machine is used to keep quenching oil clean. It removes soot and carbon particles from quenching oil on regular basis which improves heat transfer properties of quenching oil.
- Thermic Fluids: Installation of centrifuge filters offline for thermic oil cleaning improves heat transfer efficiency of fluid, Reduced risk of clogging pipes, valves, pumps, mesh filters, heat exchangers etc., Reduced energy consumption while achieving heating output similar to new oil, Increased system longevity, Reduced system breakdown time.
Features of Karroter’s Centrifugal Oil Cleaning Machines
- Compact and Robust Design: Easy to install and requires minimal maintenance.
- No Consumables Required: Operates without needing replaceable filter elements.
- Customizable Options: Designed to meet specific industrial requirements.
- User-Friendly Operation: Simplified controls for hassle-free usage.
How Does a Centrifugal Oil Cleaning Machine Work?
The working principle of a centrifugal oil cleaning machine revolves around centrifugal force. When the machine is in operation, the oil is spun at high speeds, causing contaminants to separate based on their density. The sludge and water are collected separately, leaving the oil clean and ready for reuse. This ensures uninterrupted machinery operation and reduced maintenance costs.
Why Karroter for Centrifugal Oil Cleaning Machines?
At Karroter, we are committed to providing top-notch centrifugal oil cleaning machines that deliver exceptional performance. Our machines are engineered with precision and backed by excellent customer support. Whether you need a standalone unit or a complete centrifugal oil filtration skid, we have the expertise to meet your requirements.
Contact Us Today!
If you’re looking to improve your oil filtration process, invest in our reliable and efficient centrifugal oil cleaning machines. Contact us today for a free consultation and discover how our solutions can benefit your business.
